Facilities

MACHINES

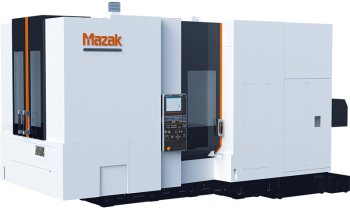

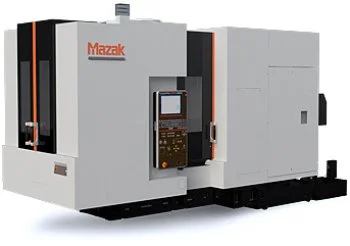

Horizontal Machining Centers (40)

6800

8800

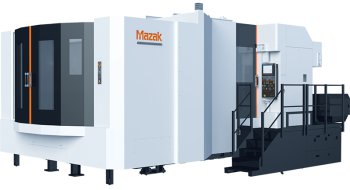

10800_II

Vertical Machining Centers (3)



haas_vf2ss

Horizontal Lathes (6)



NT42509d2e16e8ab

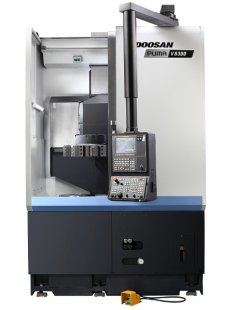

Vertical Lathes (3)

Doosan_V550



Specialty Lathes (2)



Doosan_tt2500





Internally Integrated Automated Cells (2)



Fanus710_ic



HaasST30S





Support Equipment



PMW

SUPPORT SERVICES

Quality Control

CMM

Quality Support

CAM2



Engineering Support

CAM3

Additional Services

  handheld





400mm (1)
 Mori Seiki
• Twin Pallets
• 60 Tools
• Max Travel:  X=23” : Y=21” : Z=21”

500mm (10)
 Mazak and Mori Seiki
• Twin Pallets
• 40 to 160 Tools
• Max Travel:  X=31.5” : Y=31.5” : Z=31.5"

600mm (23)
 Mazak, Mitsubishi and Mori Seiki
• Twin Pallets
• 60 to 120 Tools
• Max Travel:  X=41.34” : Y=35.43” : Z=38.58”

800mm (4)
 Mazak
• Twin Pallets
• 120 Tools
• Max Travel:  X=55.12” : Y=47.24” : Z=53.15”

1000mm (2)
 Mazak
• Twin Pallets
• 120 Tools
• Max Travel:  X=66.93” : Y=55.12” : Z=60.04”





Mori Seiki and Haas

• 20 Tools
• Max Travel:  X=31.5 : Y=18.1” : Z=20”

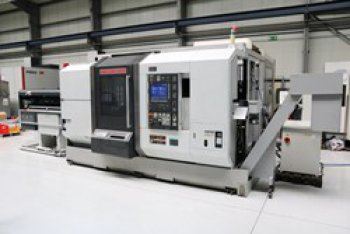

Hitachi Seiki and Mori Seiki

• Max Swing 28” Max Length 36”
• Tool Capacity up to 12 per Turret
• 2 axis and 4 axis machines available







Okuma Howa and Doosan

• Max Swing 28” Max Length 29”
• Tool Capacity up to 12
• With live Tooling













Doosan TT-2500

• Twin Spindle w/Fanuc Robot--200# Capacity
• Twin Turret-Live Tooling
• Swing 22” Length 30”
• Tool Capacity--12 per Turret

  Mori Seiki MT-2500
• Twin Spindle w/12" Chucks
• Tool Spindle w/B-Axis Control
• 12 Tool Turret 2 w/Live Tooling

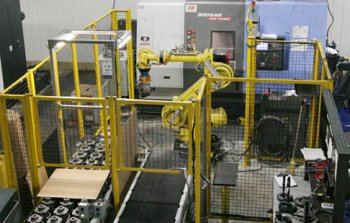

Fanuc 710iC/50 Robots

• Max Load Capacity: 110 lbs.
• Max Reach: 80.7”
• Conveyor Fed iRvision 2D Guidance

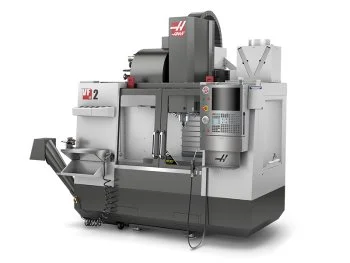

Haas VF2SS Vertical Machining Center
• 25 Tools
• Rotary Indexer
• Max Travel: X=30” : Y=16” : Z=20”

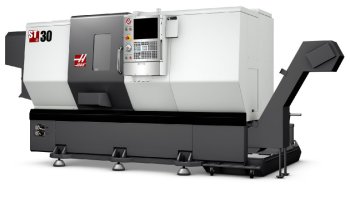

Haas ST30 Horizontal Lathe
• Max Swing: 31.75” Max Length: 26”
• 12 Tool Turret
• Max Travel: X=12.5” : Z=26”











• Fully Equipped Tool Room
• Sawing - Grinding - Honing
• Lapping – Washing
• Hoist capability – up to 2000 lbs
• Parlec 1550 TMM - Max Travel: Diameter = 16.53" Height = 23.62"











CMM’s
Brown and Sharp Excel
Sheffield Apollo RS-150
Sheffield Apollo RS-50
Brown and Sharp Global
Mitutoyo
• 360 Degree Rotation
• PH-9 and PH-10 Heads
• Probe Racks
• Max travel: X 48” : Y 80” : Z 40”
FARO Gage - Portable CMM





Cleanliness Testing Lab

PC-DMIS - Software
GAGETROL - Calibration Software
QI Macros - SPC Software

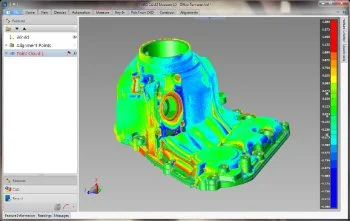

CAM2 - Gage Software








Cadkey
 - Version 2: 5.01
Mastercam - Version x5
PC-DNC Wireless Version 5.0
Solid Works - 2013
Micro Estimating - Version 12
CAMWorks - 2013







Vantage by Epicor
EDI and Bar Code Capablities
